When Conventional Printing Becomes a Bottleneck

How One Pass Works？

Conventional scanning UV printers offer flexibility for varied artwork and small batches. But when a factory repeatedly processes large quantities of boards, the production model can become a limiting factor.

• Repeated carriage movements cap output on high-volume jobs
• Loading, positioning, unloading and transfer consume production time
• Industrial customers require consistent artwork, color and quality across batches
• Printing becomes the bottleneck when handling recurring orders
• True cost includes ink, substrate, labor, maintenance, waste and reprints
• Feeding, finishing, scheduling and inspection all affect overall efficiency

  The right system configuration starts with your manufacturing process—not with a speed figure alone.

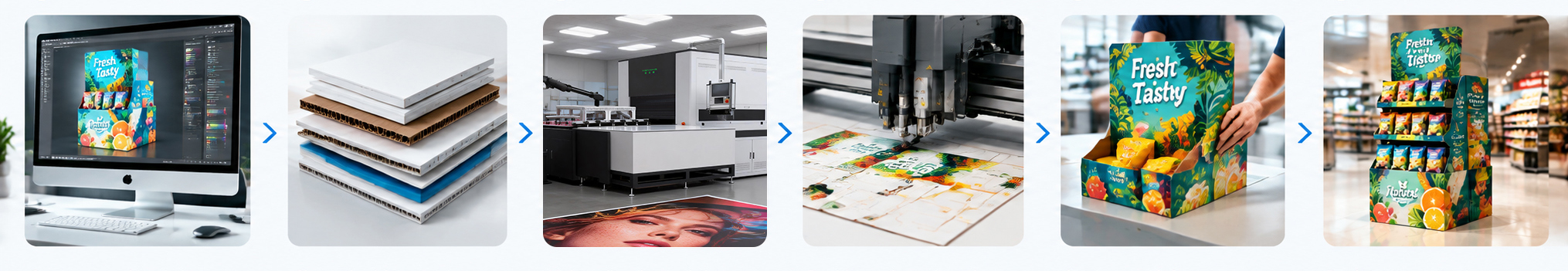

1. Artwork preparation — dimensions, color, resolution, layout, job parameters
2. Substrate feeding and positioning — loading, alignment, board separation
3. One Pass inkjet printing — image deposited as substrate moves through the zone
4. UV curing — ink cured under selected system settings
5. Inspection and downstream processing — cutting, laminating, fabrication, packaging

   Actual throughput depends on printhead configuration, ink coverage, print mode, material dimensions, curing conditions, maintenance and downstream handling.


• Material Flow: Board loading, alignment, collection logic. Board dimension, weight and warpage will affect conveying reliability.


• Artwork & Production Control: Job release, artwork‑version approval, print‑parameter management, traceable production records.


• Quality Management : Inspection criteria for print position, colour consistency, defects, curing and substrate damage; record rejects and analyse root causes.

• Downstream Capacity Matching : Cutting, laminating, fabrication and packaging equipment must keep pace with print output; otherwise bottleneck transfers to downstream stations.


• Maintenance & Operator Training: Scheduled printhead maintenance, cleaning cycles, ink‑system management, troubleshooting and operator skill training.

• Print quality & colour consistency: Confirm resolution, colour gamut, solid‑ink performance, fine‑detail reproduction and batch‑repeatability; establish complete colour‑management workflow matching target substrates.


• Ink adhesion & curing: Execute adhesion and curing validation on real customer substrates. Ink performance varies with coating, surface treatment, ink coverage and end‑use scenarios.


• Board transport & registration: Evaluate board flatness, positioning accuracy and conveying stability. Thin‑gauge or warped substrates require special material‑handling configurations.

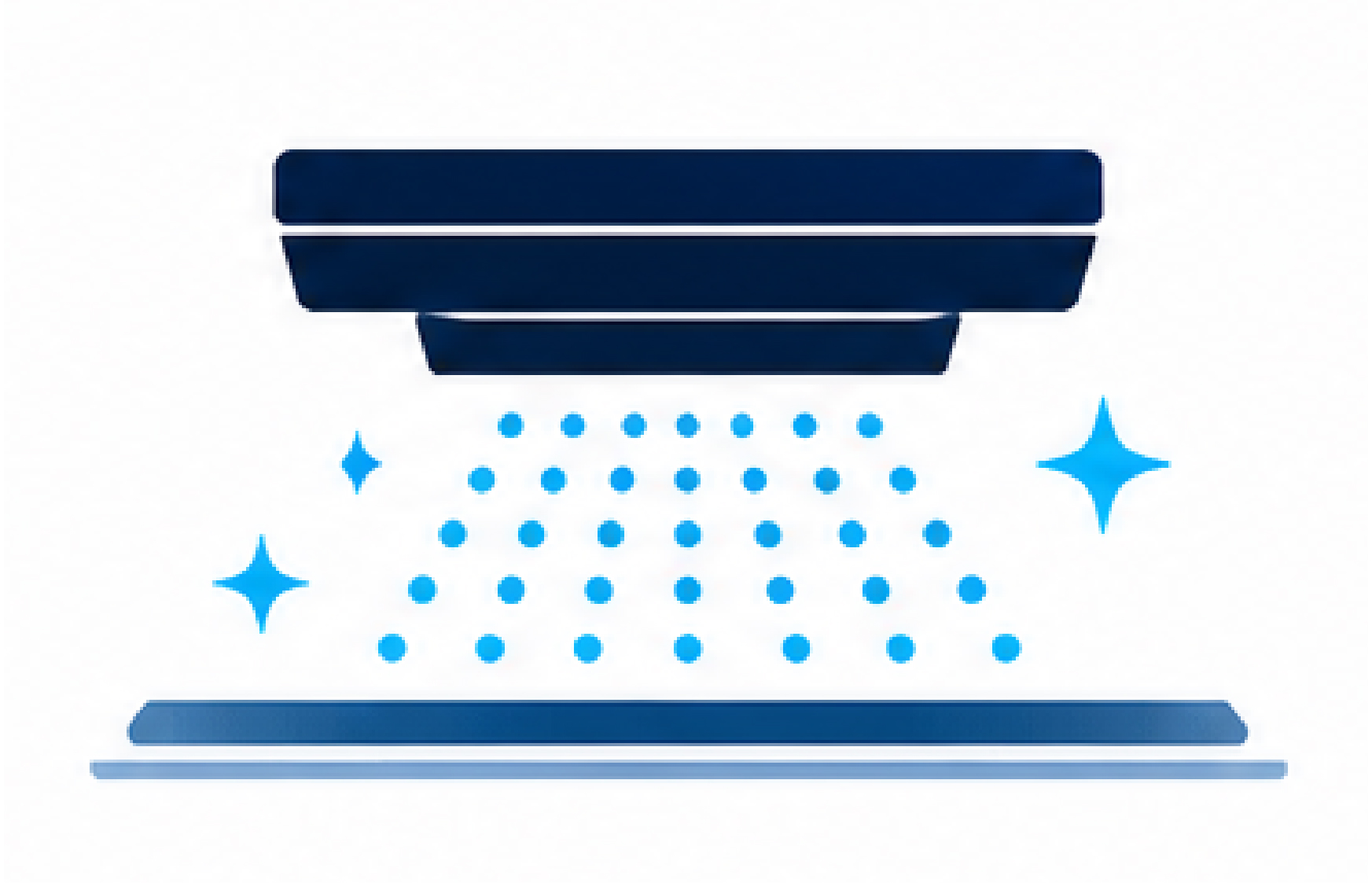

• Printhead maintenance: Confirm recommended maintenance schedule, cleaning workflow, ink circulation, nozzle inspection and recovery procedures.


• Environmental operating conditions: Confirm temperature, humidity, power supply, ventilation and safety specifications with supplier. Follow safety instructions for UV ink and curing‑system operation.


• Pre‑acceptance criteria: Agree measurable acceptance standards before commissioning: print quality on validated substrates, verified production throughput, registration & colour specifications, operator training scope and test‑run procedures.
