Industrial One Pass UV Printing for Building Panels
Discover industrial One Pass UV printing for decorative building panels with YiliJet DREAMS systems. Explore a production-tested MDF application, print quality results, material compatibility and high-throughput panel printing workflows.
Case Details
Building Panels Solution
Digital Printing for Building Panels & Decorative Panels
DREAMS One Pass UV Printing Systems
YiliJet DREAMS One Pass UV printing systems are designed for manufacturers evaluating high-throughput digital printing on compatible panel materials.
Building Panel Printing Applications

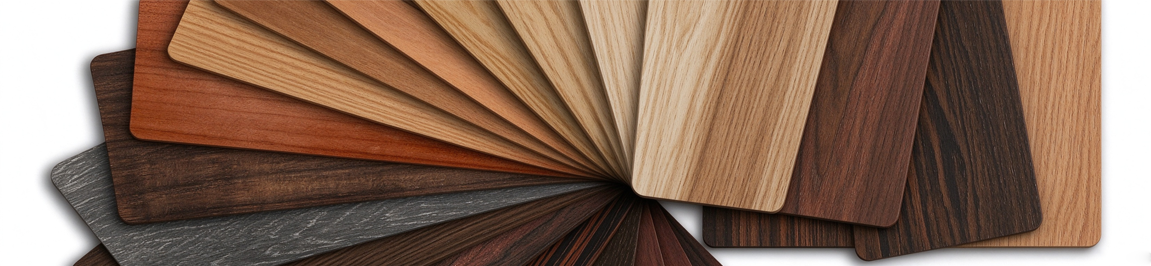

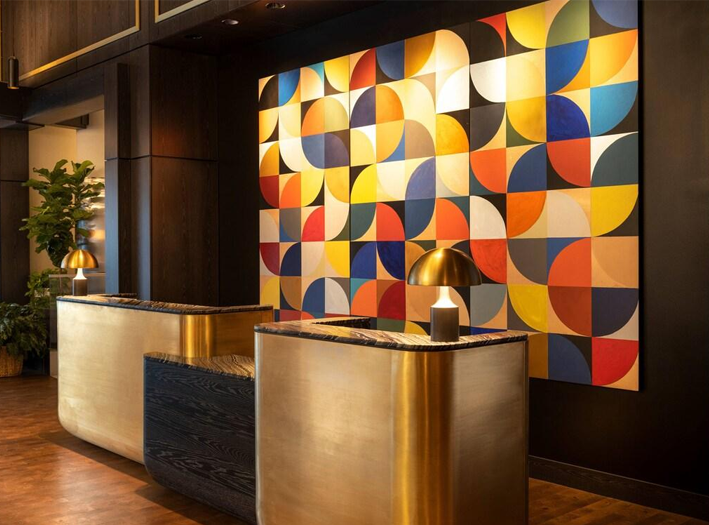

MDF Decorative Panels
Furniture, cabinetry, decorative wall panels and interior fit-out products.

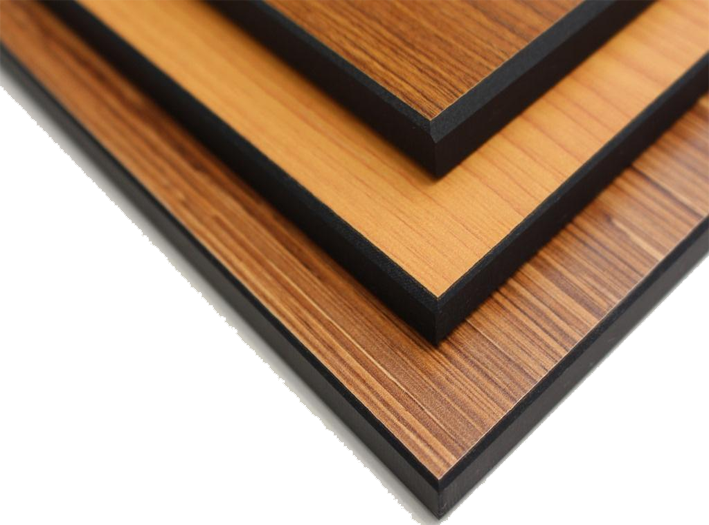

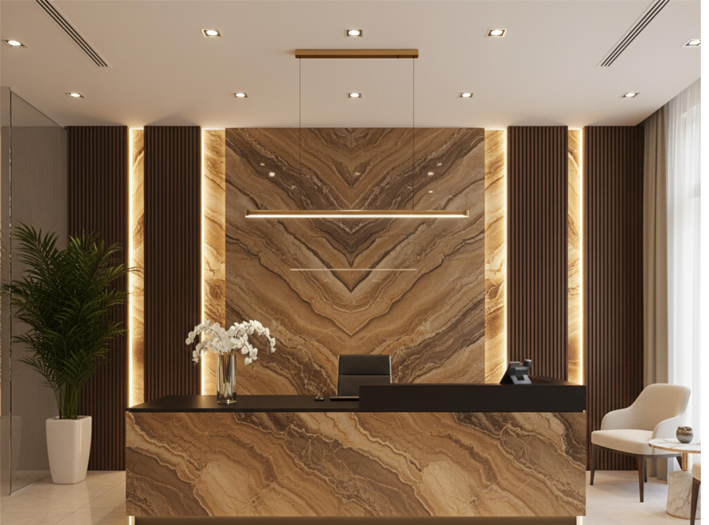

HPL Decorative Panels
Decorative surfaces for furniture, interiors and commercial environments.

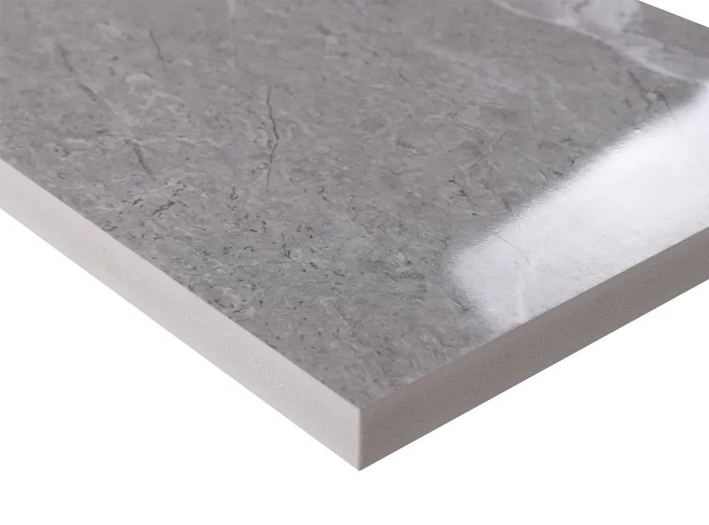

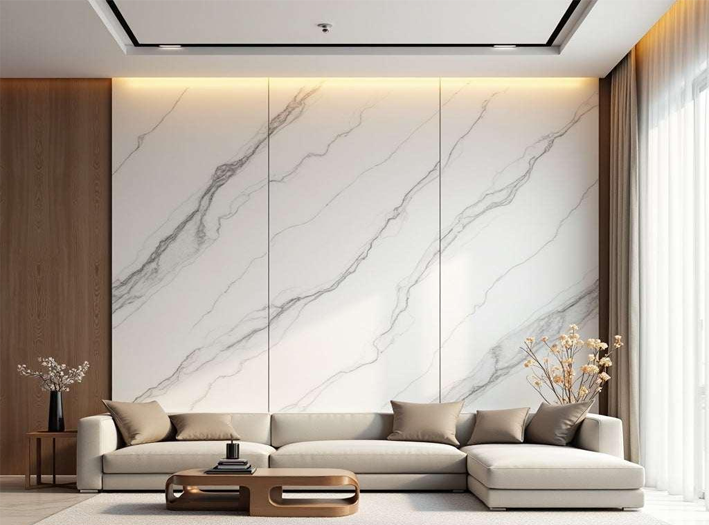

PVC Panels
Selected interior cladding and decorative panel applications.

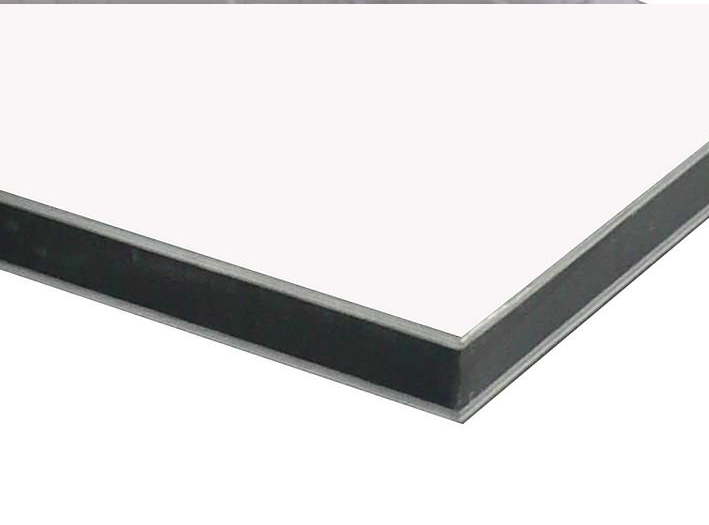

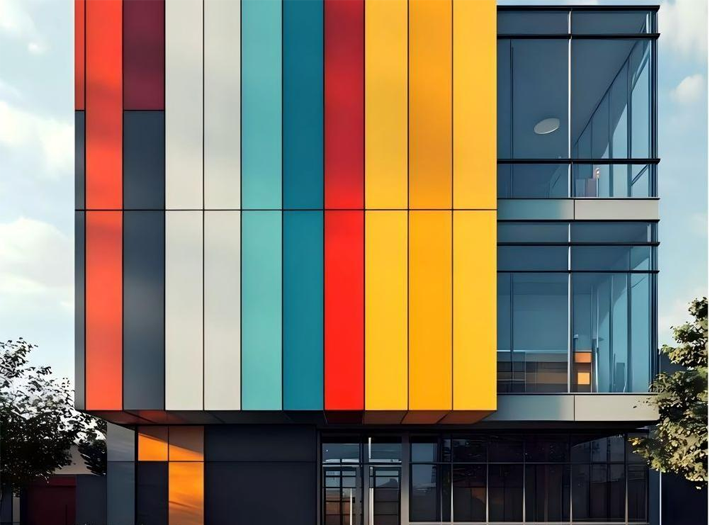

Aluminum Composite Panels
Selected architectural, display and decorative applications.

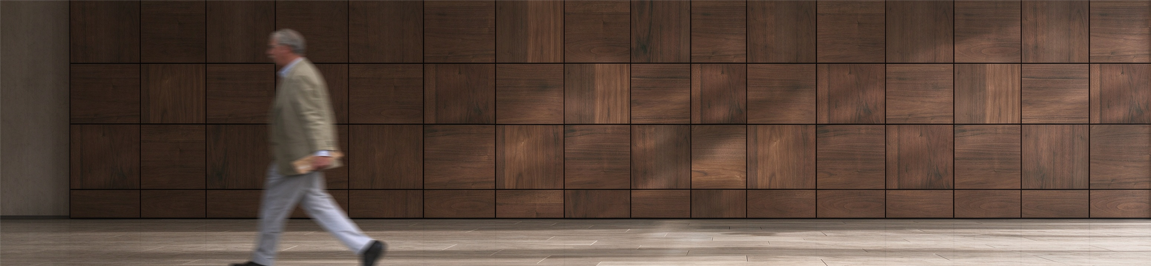

One Pass Digital Printing for Decorative Panels
Building panel manufacturers need differentiated designs, consistent surface appearance and flexible production options. Industrial digital printing supports decorative graphics on compatible rigid panels while allowing digital artwork changes.YiliJet's DREAMS One Pass UV printing systems use a fixed printhead array and controlled substrate transport to print digital artwork as the panel moves through the printing zone.
In a reported MDF production test, the DREAMS 1224 printed 1220 × 2440 × 18 mm boards. The tested walnut woodgrain design achieved a 17-second print cycle, with continuous production reaching 100 boards per hour over four hours.
Target Applications & Materials

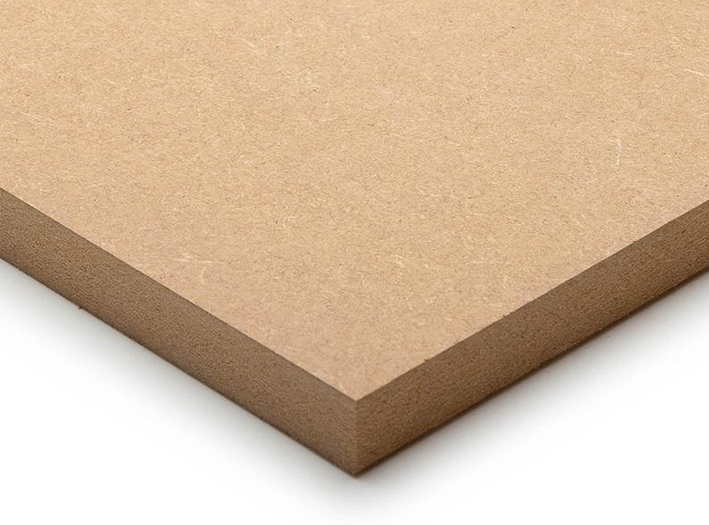

MDF
Surface preparation, adhesion, colour consistency and curing.
HPL
Surface chemistry, ink adhesion and wear resistance.
PVC
Surface treatment, ink compatibility and dimensional stability.
ACP
Coating compatibility, adhesion and panel flatness.
PET-faced panels and other rigid boards can also be included in material validation. Coated or laminated MDF may behave differently from raw MDF. Material compatibility must be confirmed through testing.
Building Panel Printing Workflow
01
Artwork & Material
Artwork, dimensions and surface
02
Feeding Test
Flatness and compatibility
03
Printing
Validated print settings
04
Quality Check
Colour, adhesion and curing
05
Finishing
Final validation
Material-Specific Production Workflows

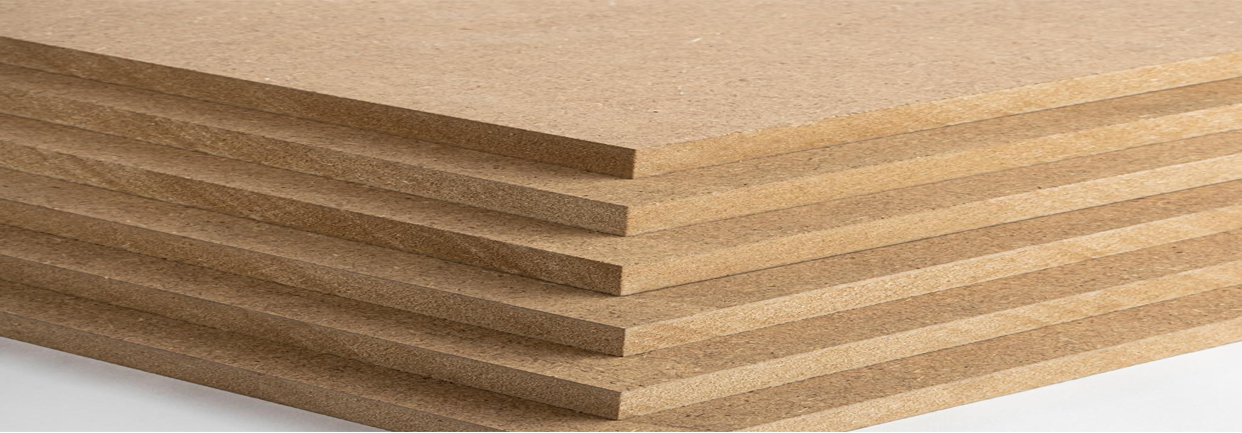

MDF Workflow
STEP 01Surface Preparation
STEP 02Test Printing
STEP 03Adhesion & Curing
STEP 04Colour Inspection
STEP 05Continuous Production
STEP 06Finishing Trial

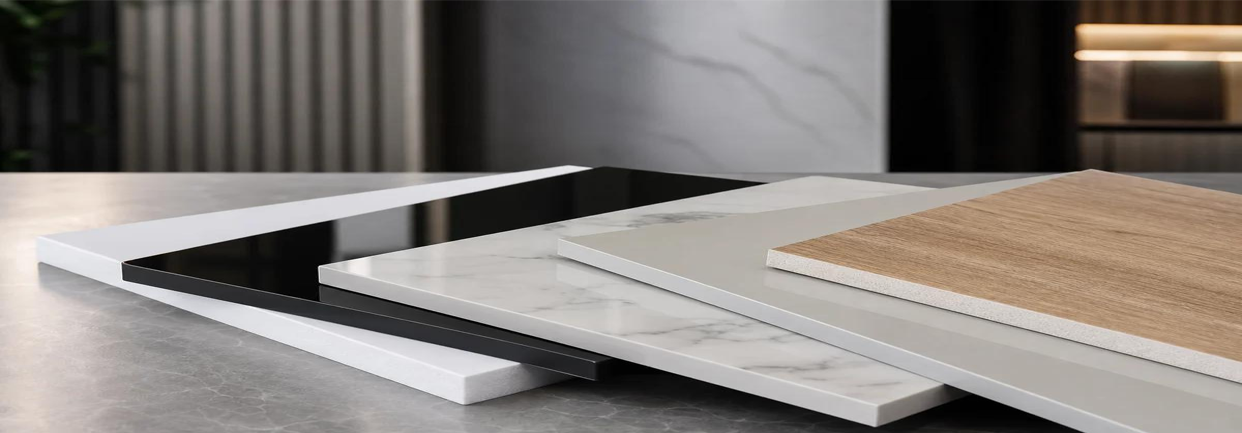

HPL, PVC & PET-Faced Panel Workflow
STEP 01Surface Evaluation
STEP 02Ink Compatibility
STEP 03Adhesion Test
STEP 04Curing Check
STEP 05Wear Resistance
STEP 06Finishing Trial

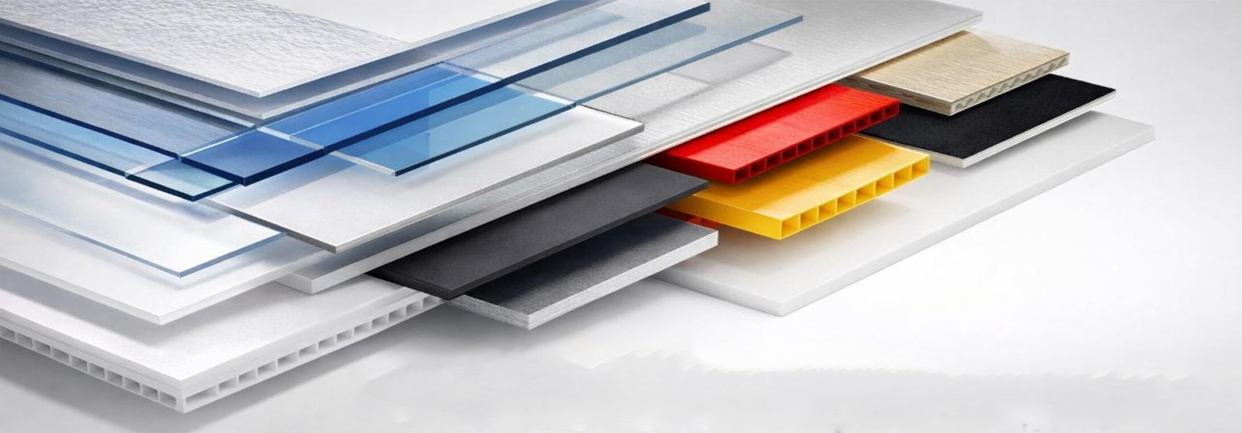

ACP & Other Rigid Boards Workflow
STEP 01Machine Compatibility
STEP 02Thickness & Flatness
STEP 03Feeding Test
STEP 04Print Test
STEP 05Adhesion Check
STEP 06Finishing Trial

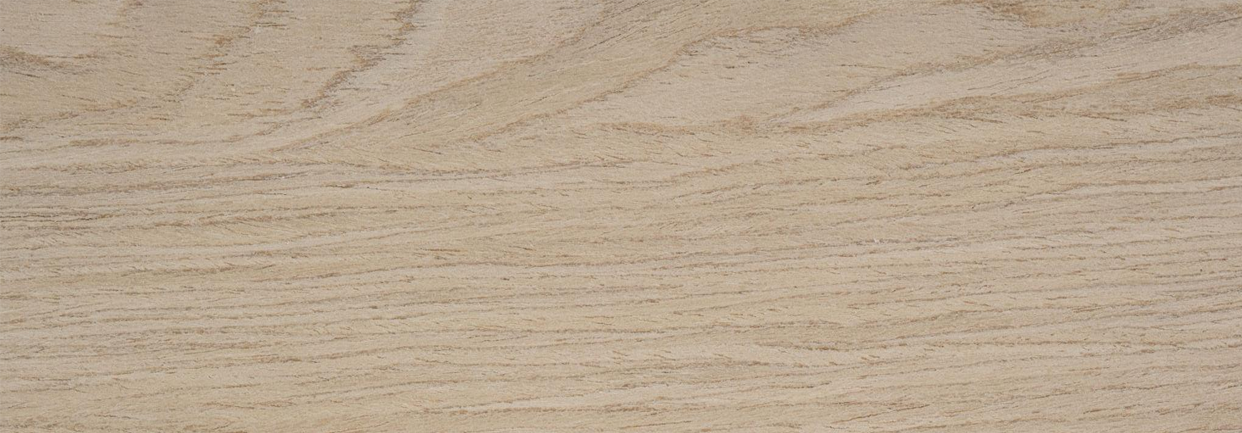

Print Performance & Quality Control
Consistent Visual Output
The MDF test reported very good image consistency and minimal visible colour variation.
Reduced Visible Banding
Substantially reduced banding compared with the reported baseline process.
Ink Consumption
Reported MDF test consumption: 8–12 ml/m².
Adhesion & Curing
Adhesion was reported as normal under the test conditions; post-curing can be evaluated.

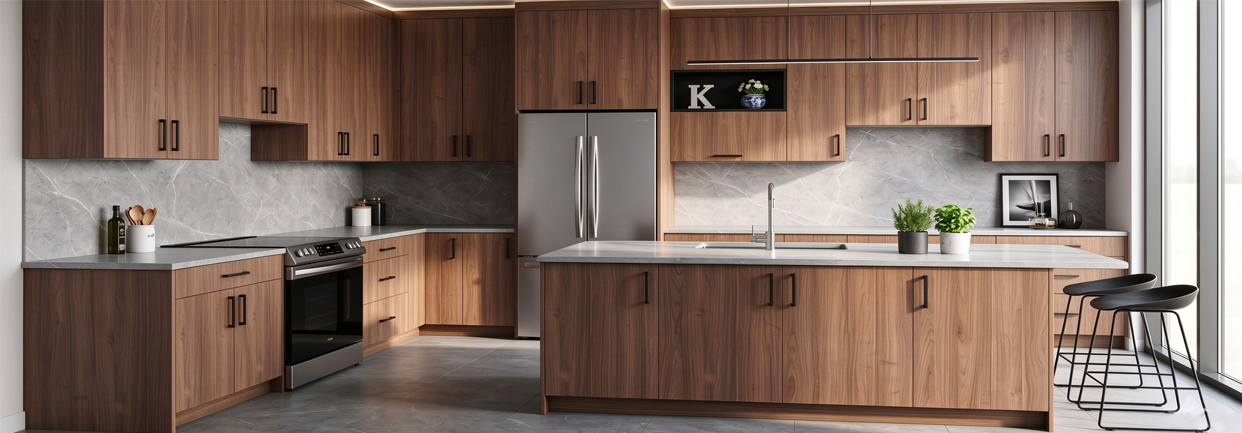

DREAMS 1224 MDF Printing Test
YiliJet evaluated the DREAMS 1224 One Pass UV printing system using MDF boards measuring 1220 × 2440 × 18 mm. The reported test used a 720 × 1800 print mode and walnut woodgrain artwork.
Reference Printer
DREAMS 1224
Test Material
MDF
Board Dimensions
1220 × 2440 × 18 mm
Print Mode
720 × 1800
Print Cycle
17 seconds per board
Continuous Output
100 boards per hour
Test Duration
4 hours
The test also reported very good image consistency, minimal visible colour variation and substantially reduced banding compared with the reported baseline process.
Building Panel Production Cost Model
Ink Consumption
Ink usage and ink price per panel.
Electricity
Measured energy consumption.
Labour
Labour allocated to accepted output.
Maintenance
Consumables and maintenance expenses.
Production Costs
Facility and production-line costs.
Waste & Finishing
Rejected panels, reprints and extra processing.
Building Panel Printing FAQ
It is a digital printing system designed to print on compatible rigid panels used in decorative, furniture, interior or selected architectural applications. Machine selection depends on panel dimensions, surface characteristics, required output and production workflow.
It can be evaluated for compatible building panels. Surface preparation, ink adhesion, curing, colour consistency and end-use requirements must be validated for each material.
In the reported MDF test, the walnut woodgrain design had a 17-second print cycle, and continuous production reached 100 boards per hour over four hours. Other materials, designs and production setups may produce different results.
Machine handling capability and print-surface compatibility must both be checked. Coatings and surface chemistry may require different preparation or ink configurations.
Manufacturers can evaluate ROI by comparing the total investment and operating costs with the production benefits. Key factors include printing speed, daily output, ink consumption, labour costs, energy use, maintenance, material waste and finishing requirements. Comparing the cost per accepted panel and expected production volume with the existing process helps estimate potential savings, payback period and long-term profitability. Actual results depend on the application, operating conditions and production efficiency.
Evaluate Your Building Panel Application
Share your panel material, dimensions, decorative design and production targets to evaluate print quality, material compatibility and production performance.
Request a Building Panel Print Test
Material Testing · Print Quality Evaluation · Production Assessment
