Dreams 1232Max‑HY Hybrid One‑Pass UV Printer
The fully‑automatic hybrid industrial UV board printing line for rigid‑substrate mass‑production.
Ideal for manufacturers looking to upgrade digital printing capacity or expand panel‑decorating business.
Business Pain Points
Many panel‑printing manufacturers face bottlenecks when scaling digital production：
- Conventional scanning UV printers struggle with large‑volume orders, limited output speed
- Heavy manual operations, high labour costs, unstable batch‑to‑batch colour performance
- Hard to integrate with existing factory production lines, low machine utilization
- Long lead‑times cause order backlog; higher unit cost for mass‑batch jobs
- Separate machines for high‑speed production & high‑quality scanning printing require large investment
Manufacturers need one hybrid industrial printer that delivers both one‑pass high‑speed mass output and multi‑pass scanning fine printing. Dreams 1232Max‑HY addresses these real‑world production challenges.
|
|
 |
 |
|
High Speed Industrial Digital Printing Solution

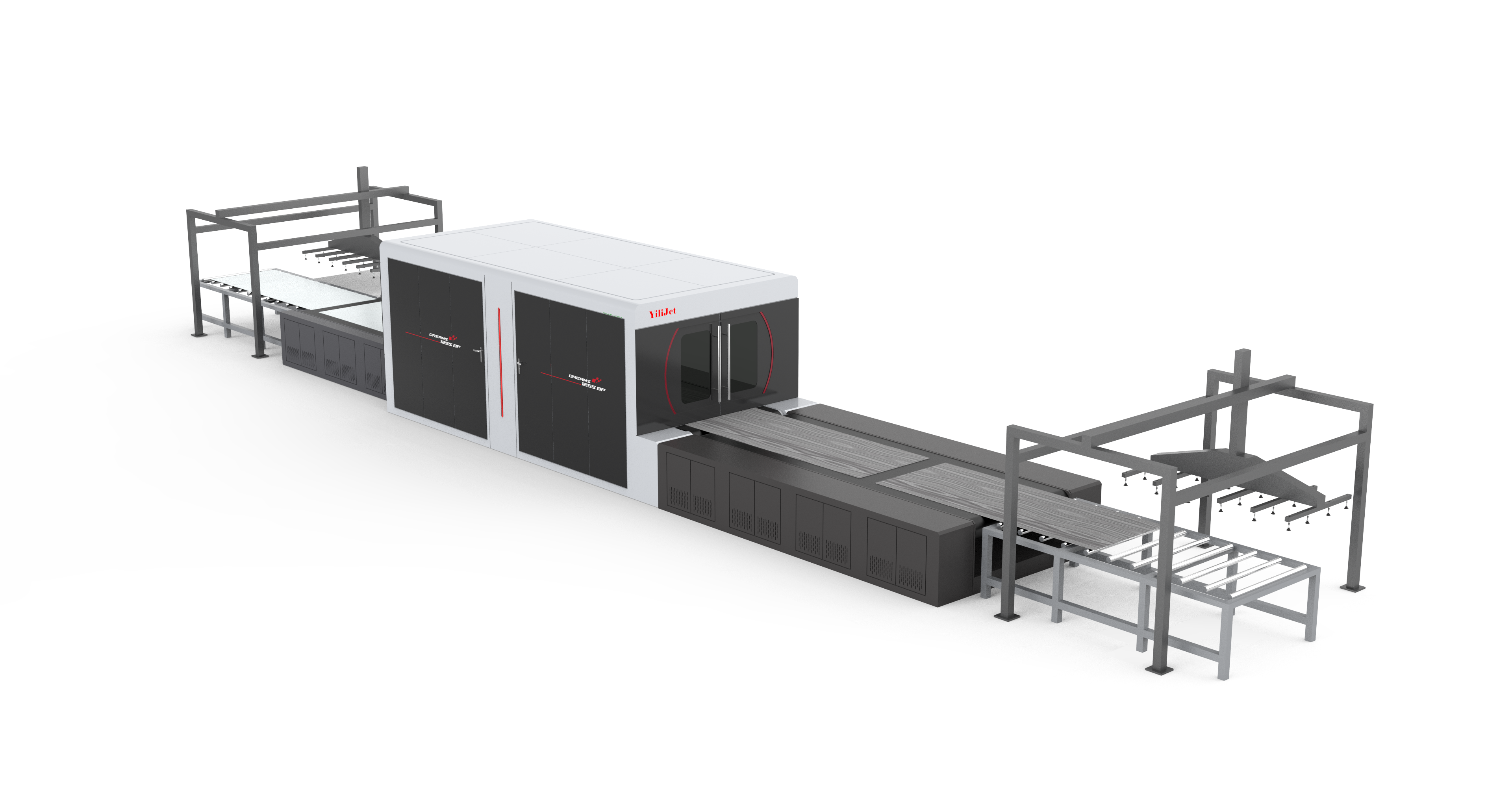

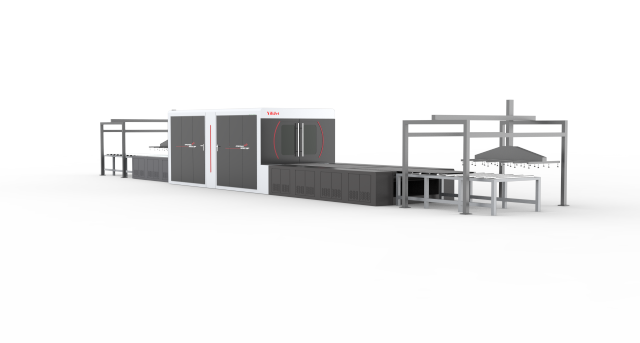

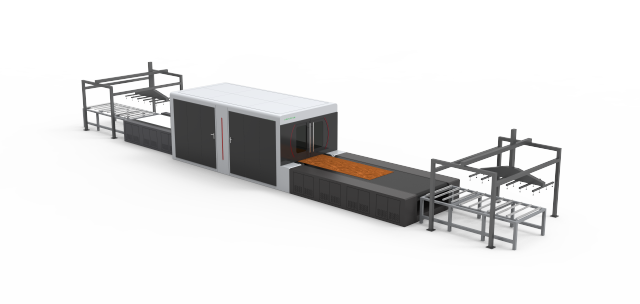

Dreams 1232Max‑HY is Yilijet new‑generation hybrid one‑pass UV industrial inkjet board printing line. It supports One‑Pass high‑speed continuous production and 1‑4 pass scanning precision printing within single machine. Built for rigid‑panel industrial manufacturing, it balances high throughput and premium print quality.
Printing Size: Max length 1.25‑3.2 m｜Max width 300‑1224 mm Drive system: Maglev linear motor Ink supply: 15 L per‑color, 3‑stage constant‑temperature ink cartridges
|
Core Hardware & Performance Advantages
- Hanging‑cage main‑beam + industrial linear guides, high‑rigidity frame for long‑term stable operation
- Integrated square‑tube welded machine frame for solid mechanical foundation
- Perforated vacuum suction belt conveyor, handles heavy‑weight rigid substrates
- Imported Desboer reducer for conveyor drive, smooth stepping movement & high positioning accuracy
- Non‑contact negative‑pressure nozzle cleaning, prevents print‑head damage and nozzle clogging
- Reserved 6‑colour configuration expansion space for complex colour‑critical applications
- Maglev linear‑motor carriage drive for high‑speed, high‑precision motion
- Simultaneous automatic feeding & finished‑product output with auto positioning
- Native support for Yilijet MES4.0 intelligent production management system, IoT connectivit
|
|
|
 |
|
Ink System & Industrial‑Grade Stability
Multi‑patented industrial‑grade stable ink circuit with three‑heat‑source 3‑stage temperature control.
- 15 L large‑capacity constant‑temperature ink cartridges per colour, sustains non‑stop long‑run production
- Stable ink temperature & viscosity, minimises cross‑batch colour deviation
- Optimised ink circulation reduces sediment risk for continuous shift‑work
- Compatible with wide range of industrial UV inks for decoration & packaging applications
- Reduce material waste and improve resource utilization for mass‑volume production
|
Operation & Maintenance Experience
- Non‑contact automatic nozzle cleaning & automatic nozzle compensation, lower manual‑maintenance workload
- Transparent machine housing for real‑time visual inspection of printing progress
- Automatic system monitoring for ink temperature, pressure and conveyor status
- Intuitive operation UI, order management & artwork layout within MES4.0 platform
- Reduce reliance on highly‑skilled operators; new staff can get operational quickly
|
|
|

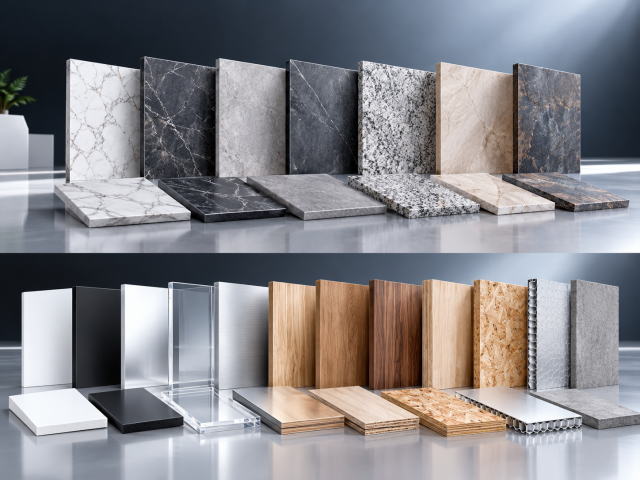

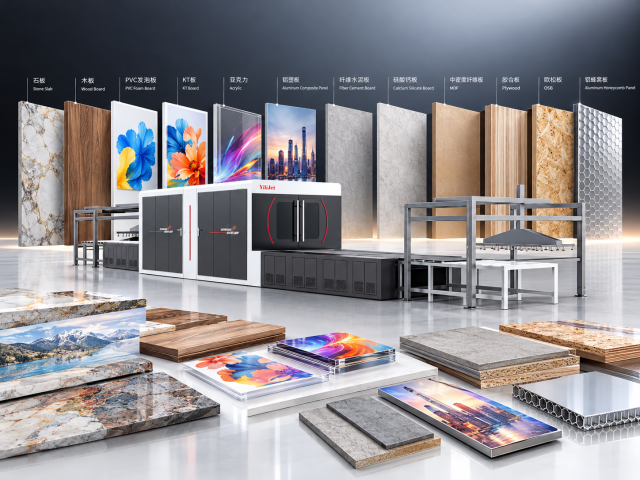

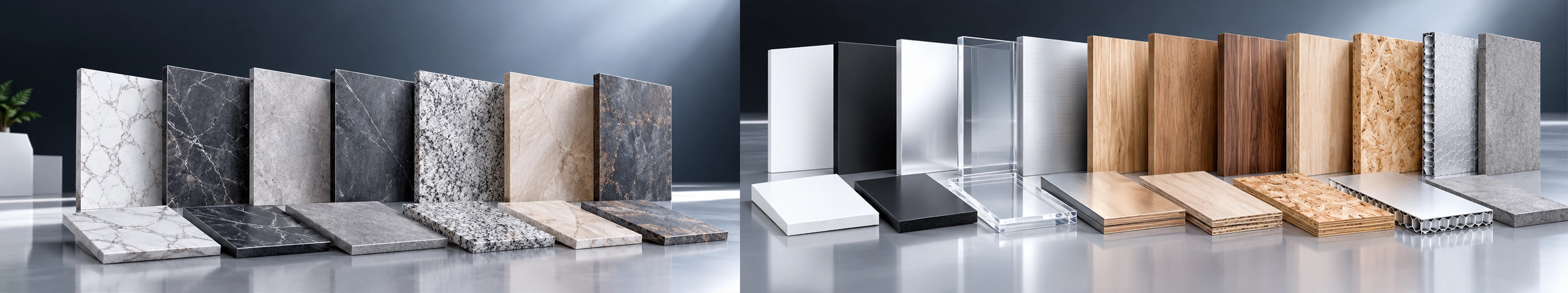

Supported Substrates & Target IndustriesCompatible substrates: Low‑density boards, high‑density panels, oversize panels, extra‑light rigid panels and other industrial rigid substrates.
 |
Packaging & corrugated cardboard:
high‑speed carton & board digital printing |
|
Building decorative materials:
direct‑print patterns on construction‑grade panels |
|
Label & industrial manufacturing:
surface decoration for industrial components |
|
Metal‑working decorative applications for rigid‑surface finishing |

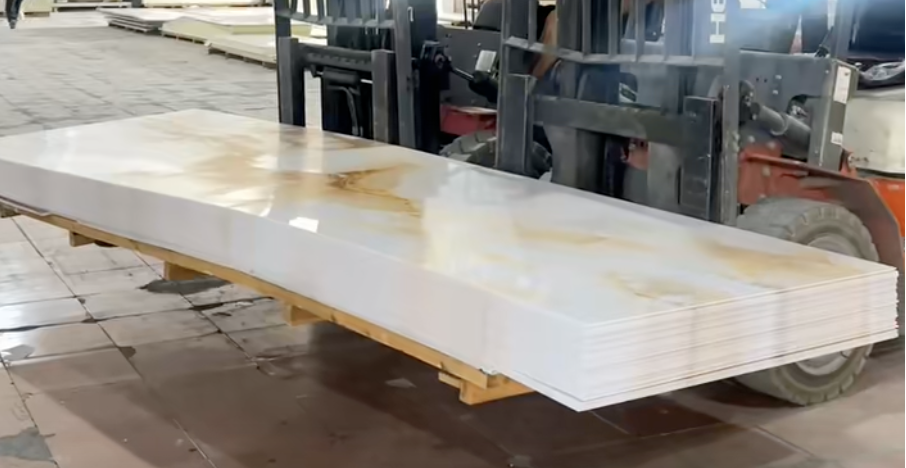

Typical Finished Products
Printed Board Output → Downstream Converting → End-Use Applications
DREAMS 1232Max-Hybrid One Pass UV printer is a flat-board printing system. After printing, the output is a printed flat panel. These panels typically require downstream processes such as cutting, creasing, folding, gluing, assembly, and edge banding before reaching the following end-use applications.
 |
 |
 |
 |
 |
Furniture & Interior
Custom furniture panels, wood-grain / stone-look surfaces |
Industrial
Equipment panels, product surface decoration, identification panels |
Signage & Advertising
Rigid signs, advertising boards, exhibition panels
|

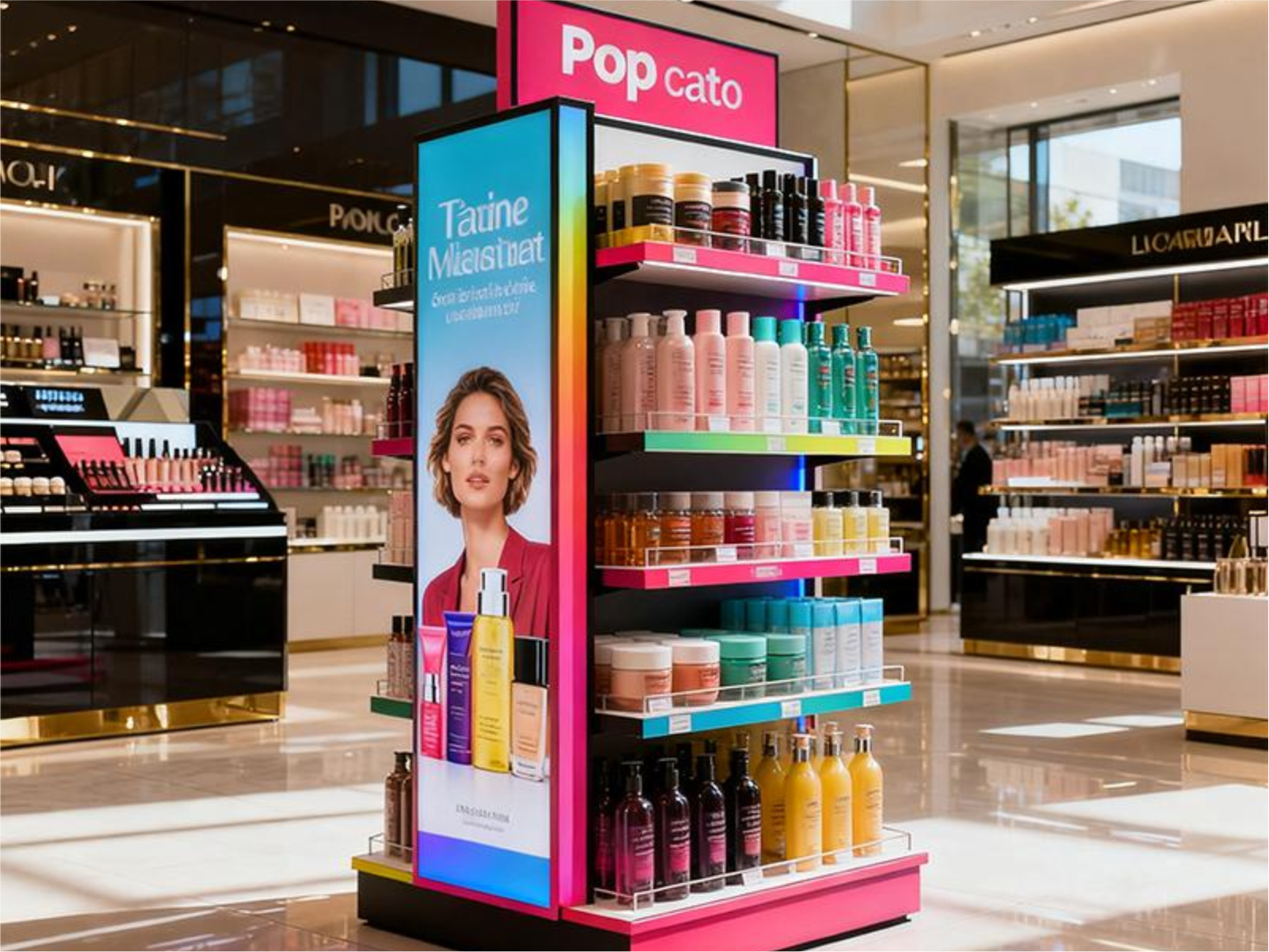

Retail Display
Floor displays, countertop displays, shelf-ready packaging, POP/POS displays |

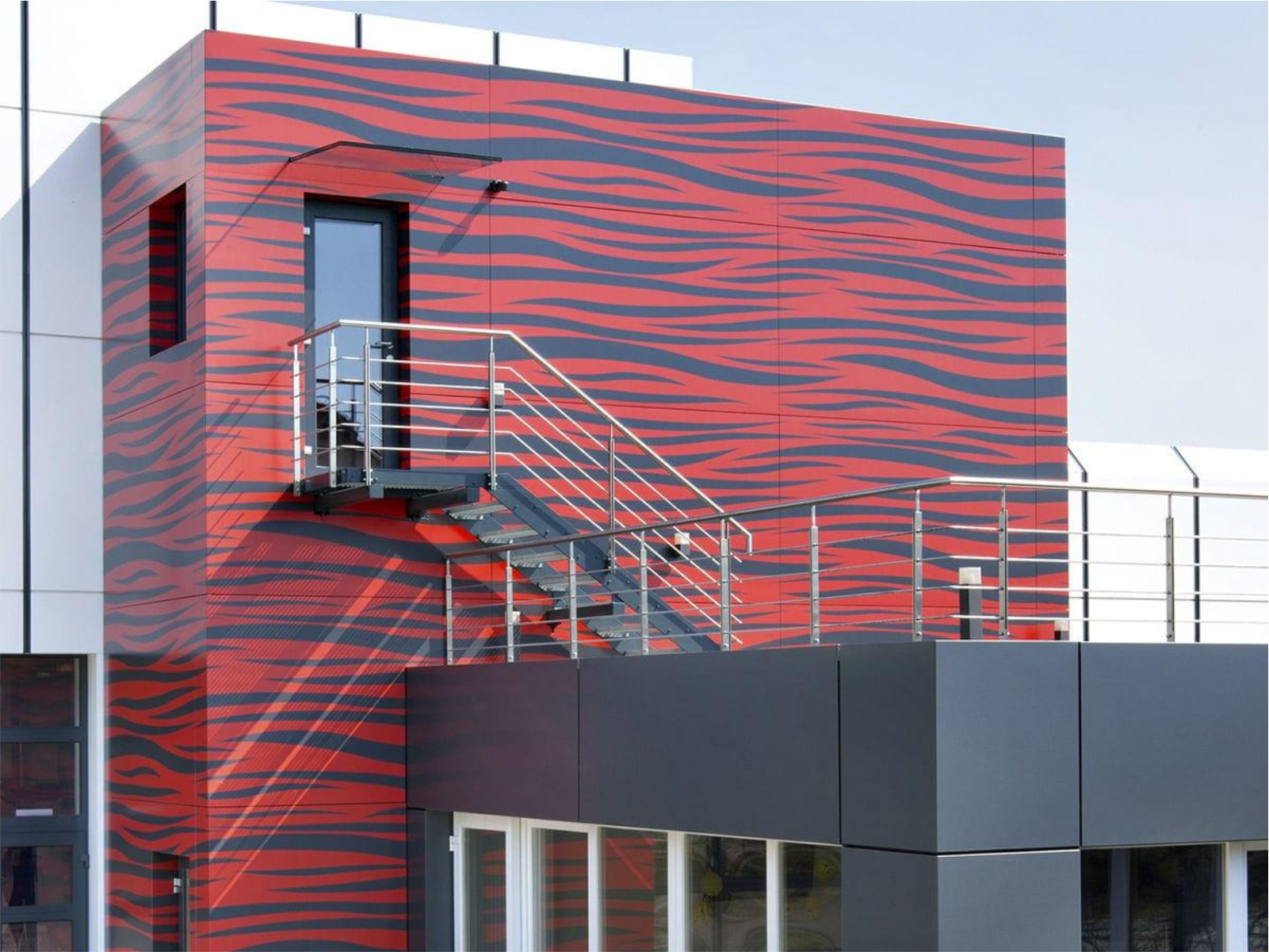

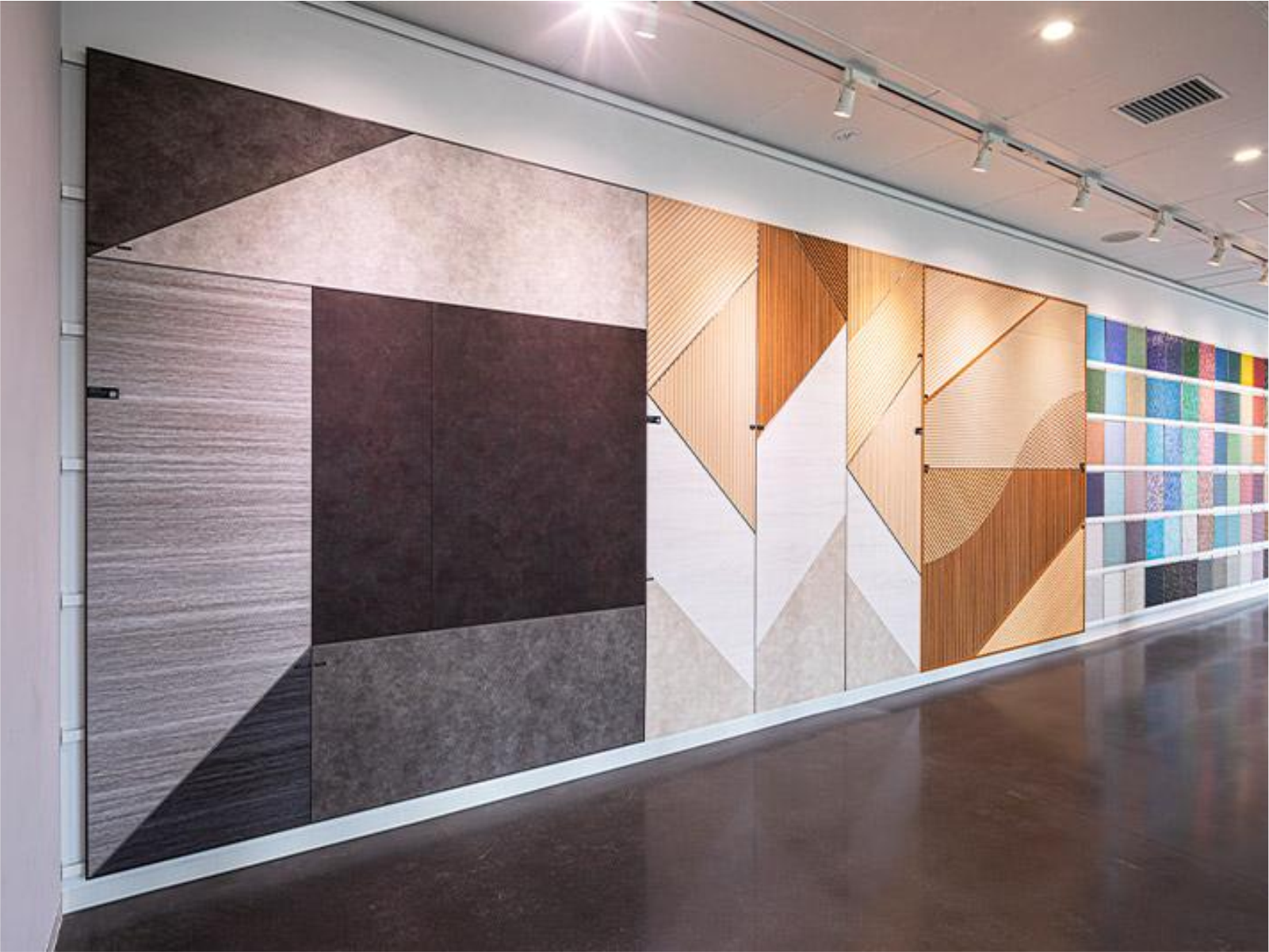

Decorative Building
MDF decorative panels, HPL surfaces, PVC panels, PET panels, ACP cladding
|
Technology Explainer
Two mainstream digital UV printing technologies for rigid‑panel production：
One‑Pass Printing: Fixed full‑width printhead array. Substrates move through print zone. Outstanding for high‑speed mass‑volume continuous production.Scanning Multi‑Pass Printing: Carriage moves back‑and‑forth over substrate. Delivers higher image definition for high‑quality custom jobs.
Dreams1232Max‑HY hybrid design integrates both technologies in one unit. You can switch workflow according to your order mix without purchasing two separate printers.
| Dimension |
Conventional Scanning UV Printing |
Yilijet One‑Pass Hybrid UV Printing |
| Architecture |
Reciprocating scanning carriage |
Fixed full‑width printheads + optional multi‑pass scanning |
| Production model |
Intermittent batch printing |
Continuous inline production |
| Automation |
Limited manual‑heavy workflow |
Full‑process automatic operation |
| Production IT |
No native production management |
MES4.0, order management & IoT connectivity |
| Labour requirement |
Multiple operators |
Minimal staffing requirement |
| Machine utilization |
Low for high‑volume orders |
High stable utilization for mass runs |
| Colour consistency |
Risk of machine‑to‑machine deviation |
Unified repeatable colour output |
| ROI profile |
Poor for large‑volume jobs |
Higher ROI as production volume scales |
Cost & ROI
|
|
Future Development
|
|
✅️Although the initial investment in One Pass printing equipment is relatively high, its cost advantage is very obvious from a long-term operational perspective. Faster production speed means more orders can be completed per unit time, reducing production cost per unit.
✅️At the same time, the high degree of automation reduces manual operation and labor management costs. In a mass production environment, One Pass printing technology can also reduce equipment waiting time and material waste, improving overall utilization of production resources.
✅️For companies that consistently undertake large-scale orders, this cost advantage will continue to manifest as production scale expands.
|
|
✅️With the continuous advancement of Industry 4.0 and intelligent manufacturing, One Pass industrial UV printing technology is developing toward higher precision, higher speed, and greater intelligence.
✅️New-generation industrial printheads are continuously improving printing quality. Intelligent control systems (such as Yilijet printing MES 4.0) are constantly optimizing production processes. Automatic detection and data management functions are gradually being improved.
✅️At the same time, the widespread adoption of environmentally friendly inks and energy-saving equipment makes One Pass industrial UV printing technology more in line with the development needs of modern manufacturing. In the future, more and more companies will integrate digital printing into their automated production systems.
|
| |
|
|
| FAQ |
|
|
Q1: Is machine demo paid? Where can I watch live machine test?
A: Showroom demonstrations are free of charge. Book your demo via web form, sales consultant or email.
|
|
Q2: Can you help us to calculate ROI for our production project?
A: Yes. Our engineering team can run custom ROI analysis based on your substrate types, daily output, labour cost and order mix.
|
Q3: Which mode should I choose, One‑Pass or Multi‑Pass Scanning?
A: Select One‑Pass for large‑volume standard‑panel orders. Choose multi‑pass scanning mode when high‑definition artwork is required. Share your typical order profile, our consultant will give tailored suggestions.
|
|
Q4: Can this machine connect with our existing upstream / downstream production lines?
A: Yes. It supports automated feeding‑unloading docking. Please send your production‑line specification for technical evaluation.
|
Low denisty board High denisty panel Oversize panel Extra-leight
HOME | FAQ | Workflow | Automatic
Solutions Applications Technology Resources Products
XENONS DREAMS delivers industrial digital inkjet printing solutions designed for manufacturers that need higher throughput, consistent print quality, flexible customization, and scalable production automation.
Built around fixed printhead array technology and application-oriented production engineering, DREAMS One Pass systems are designed to help manufacturers streamline printing workflows, reduce repetitive handling, shorten production lead times, and improve the economics of high-volume digital printing.
From packaging and retail displays to decorative building panels and selected industrial materials, DREAMS connects digital inkjet technology with real manufacturing requirements.
One Pass. Industrial Productivity. Digital Flexibility.
Built for Industrial Production.
From Digital Artwork to Production Output.
High Throughput. Flexible Customization.
Digital Printing Engineered for Manufacturing.
Industrial One Pass Digital Printing Solutions
High-Throughput Printing for Modern Manufacturing
Transform rigid-substrate printing with XENONS DREAMS One Pass industrial inkjet technology.
Designed for production environments that demand throughput, repeatability, digital customization, and efficient material handling, DREAMS systems combine fixed printhead arrays, UV inkjet printing, and configurable automation into an integrated manufacturing solution.
From packaging and retail displays to decorative panels and selected industrial applications, DREAMS helps manufacturers build a more responsive digital production workflow.
Perforated belt at bottom + vacuum suction table.Adopts hanging-cage main beam structure equipped with Industry linear guides.
High rigidity, superior precision and extended service life.
Conveyor belt transport for substrates throughout the full printing workflow.
Feeding of blank substrates and output of finished prints can run simultaneously with automatic positioning.
It delivers higher overall efficiency, reduces labor input, and supports heavy-weight substrates.
Reducer for frame drive The reducer for the printing platform conveyor belt is imported from Desboer.
It enables smoother stepping motion and higher precision.
Machine frame Integrated square-tube welded frame, solid and stable structure for smoother carriage movement.
Non-contact printhead cleaning to prolong printhead service life Negative-pressure ink suction cleans nozzle surface, lowering risks of physical damage to printheads and preventing foreign debris from being drawn into nozzles.
Flexible color configuration The machine reserves space for 6-color setup.
Printing substrates Compatible with various panel substrates with reliable industrial-grade performance.
It greatly benefits customers with tight lead times; high throughput solves production and order fulfillment challenges.
What are the advantages of One Pass Industrial UV Printers printing technology?
As the digital printing industry continues to develop towards higher speeds and greater intelligence,
ONE PASS(single-pass) printing technology is gradually becoming an important solution in the industrial printing field.
Compared with traditional scanning printing methods,
single-pass printing technology uses a fixed printhead array to complete the printing process in a ONE PASS(single-pass) ,
eliminating the need for printheads to move back and forth, thus significantly improving production efficiency.
Currently, this One Pass Industrial UV Printers technology is widely used in packaging printing, corrugated boxes,
decorative building materials, label printing, and industrial manufacturing, and has become an important choice for many companies undergoing digital upgrades.
One Pass Industrial UV Printers Printing technology enables high-speed production
One of the biggest features of One Pass Industrial UV Printers printing technology is its high production speed.
During operation, the printhead remains stationary, and the material moves continuously through the conveyor system, eliminating the need for repeated scanning throughout the printing process.
This working mode effectively reduces mechanical movement time and improves equipment utilization.
For large-volume order production, high-speed printing capabilities help companies shorten delivery cycles and improve order processing capacity.
Especially in the packaging printing and industrial production sectors, where order sizes are typically large,
single-pass printing technology can maintain a stable output, thereby meeting the company’s demand for high production capacity.
Core Advantages of One-Pass Printing (Single pass)Technology Compared to traditional digital printing methods, one-pass printing (Single pass) technology has the following characteristics:
High printing speed, suitable for continuous production.
High degree of automation, reducing manual intervention.
Stable equipment operation, suitable for long-term production.
Seamless integration with production lines.
Helps improve overall production efficiency.
These advantages have made One Pass Industrial UV Printers printing technology an important direction for the development of industrial printing.
One-Pass Printing Technology Can Reduce Production Costs
Although the initial investment in one-pass printing equipment is relatively high, its cost advantage is very obvious from a long-term operational perspective.
Due to the faster production speed, more orders can be completed per unit time, thus reducing the production cost per unit.
At the same time, the high degree of automation reduces manual operation, thereby reducing labor management costs.
In a mass production environment, one-pass (single pass) printing technology can also reduce equipment waiting time and material waste, improving the overall utilization rate of production resources.
For companies that consistently undertake large-scale orders, this cost advantage will continue to manifest as production scale expands.
Which Industries Are Suitable for One Pass Industrial UV Printers Printing Technology?
Currently, One Pass Industrial UV Printers printing technology has been widely applied in several industries:
Packaging and printing industry: enabling high-speed carton production.
Corrugated cardboard industry: improving batch processing efficiency.
Label printing industry: meeting continuous production needs.
Building decoration industry: printing patterns on boards.
The textile industry has also widely adopted OnePass printing technology at present.
The metalworking industry is gradually adopting OnePass printing technology for packaging and decorative applications.
Industrial manufacturing industry: achieving product surface decoration.
These industries generally have characteristics such as large order volumes, tight production cycles, and high automation requirements.
Future Development Prospects of One Pass Industrial UV Printers Printing Technology
With the continuous advancement of Industry 4.0 and intelligent manufacturing,
One Pass Industrial UV Printers printing technology is developing towards higher precision, higher speed, and greater intelligence.
New-generation industrial printheads are continuously improving printing quality,
intelligent control systems （Like Yilijet printing MES 4.0)are constantly optimizing production processes,
and automatic detection and data management functions are gradually being improved.
At the same time, the widespread adoption of environmentally friendly inks and energy-saving equipment makes One Pass Industrial UV Printers printing technology more in line with the development needs of modern manufacturing.
In the future, more and more companies will integrate digital printing into their automated production systems.
| Dimension |
Scanning UV Printing |
One Pass Industrial UV Printing |
| Architecture |
Scanning |
One-pass & Scanning |
| Printhead arrangement |
Limited (few printheads) |
Page-wide (full-width) |
| Four color Printhead wide |
53mm-720mm |
1250mm-1680mm |
| Production method |
Batch |
Continuous |
| Automation |
Not achievable |
Fully automatic |
| Production management software |
None |
Order system + Production Management System + IoT |
| Labor |
Multiple operators |
Reduced (fewer operators) |
| Machine utilization |
Always very low |
Very high with stable orders |
| Floor space |
High (large footprint) |
Lower (smaller footprint) |
| Color consistency |
Machine-to-machine variation |
Unified |
| High-volume orders |
Limited |
Designed for mass production |
| Return on Investment (ROI) |
Low (low for small orders; also low when large orders cannot be produced) |
High (higher ROI with larger orders) |
One-pass printing technology, with its high
efficiency, high stability and industrial advantages, will continue to play an important role in the fields of packaging printing, decorative building materials and industrial manufacturing, becoming an important driving force for the upgrading of the digital printing industry.
One Pass Industrial UV Printing solution
One Pass Digital inkjet Printing Solution
