Product Introduction

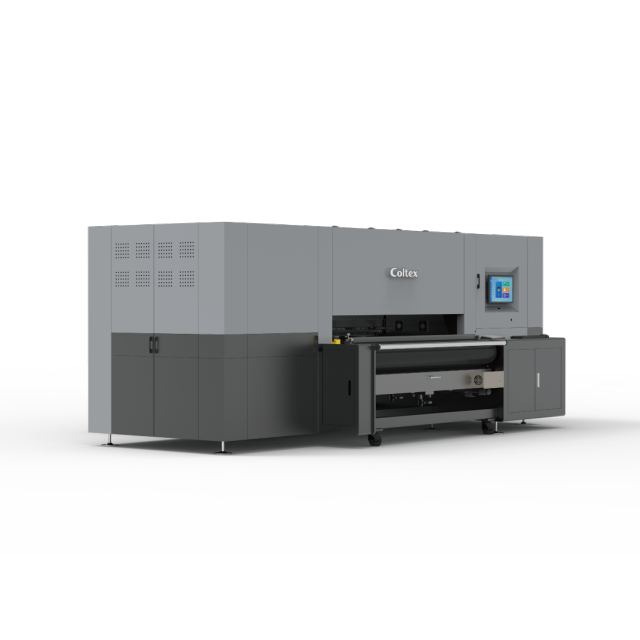

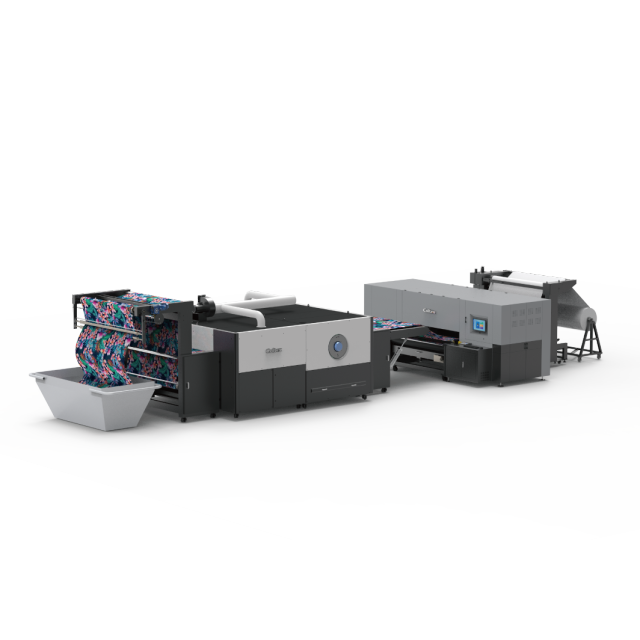

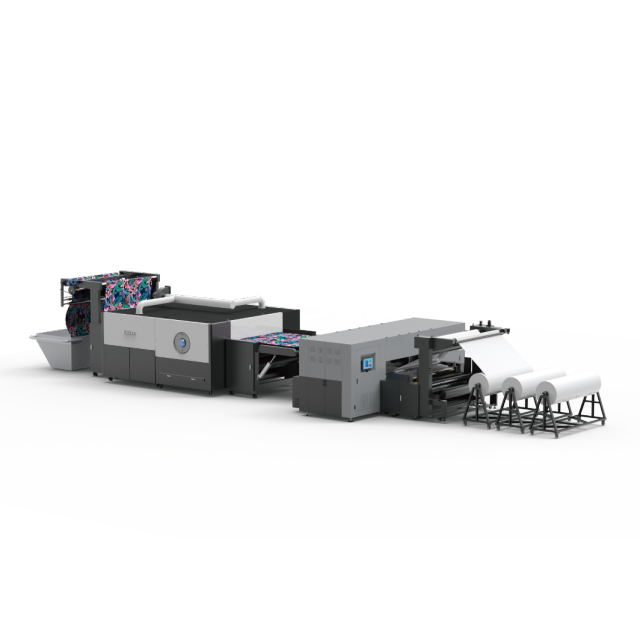

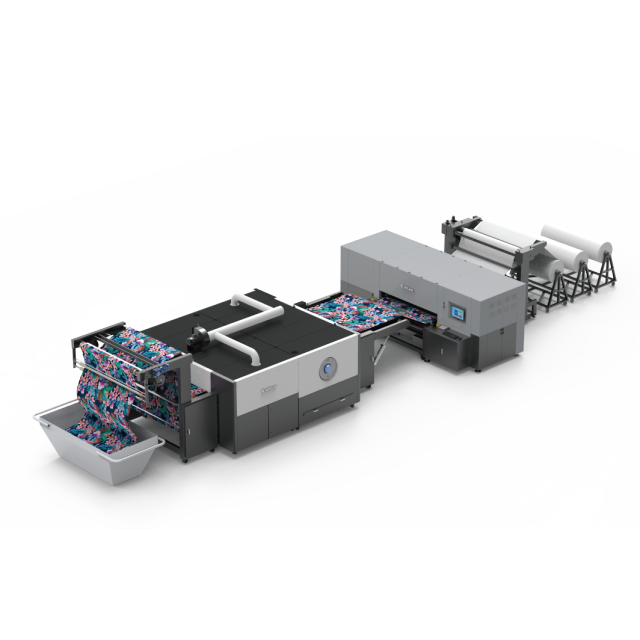

XT60 is Coltex’s large‑size high‑speed industrial belt‑direct digital textile flagship. With a standard 1850mm print width, it is equipped with Epson S3200 A3 industrial printheads, available in 48/54/72‑head configurations, supporting 4–12 full‑gamut colors and a max speed of 1080m/h. Designed for mass production of home textiles and apparel fabrics.
It features auto constant‑tension feeding, industrial negative‑pressure ink supply, internal circulation, intelligent cleaning, optional independent drying. Compatible with reactive, disperse, pigment inks, for woven/knitted fabrics: cotton, linen, silk, nylon, wool, chemical fibers. Built‑in YIPS intelligent system enables stable 24/7 high‑speed production. The core machine for large‑scale textile factories.
Key Features
✅
48–72 High‑Head Config, Scalable Productivity
48H‑4C/48H‑8C、54H‑6C/54H‑9C、72H‑6C/72H‑12C optional,
max 1080m/h, covers all factory capacities.
✅
4–12 Full Gamut, Premium Printing
12‑color spot output, wide gamut, rich layers, perfect gradients & fine patterns.
✅
1850mm Wide, Maximize Efficiency
Ideal for home textiles, curtains, apparel fabrics, continuous high‑speed production.
✅
Multi‑Ink Compatibility, All Fabrics
Reactive/disperse/pigment inks, cotton/linen/silk/wool/nylon/acid fabrics.
✅
Constant‑Tension Feeding, Flawless
Precise tension for stretch knits, wrinkle‑free, streak‑free.
✅
Negative‑Pressure + Circulation, Anti‑Clog
Degassing + internal circulation, anti‑sediment, anti‑breakage, stable 24/7.
✅
Intelligent Automation, Unmanned
Auto cleaning, multi‑wash, optional drying, YIPS remote control.
✅
Heavy‑Duty Frame, Industrial Grade
Stable structure for long‑hour heavy‑duty production.
Core Specifications
- Model: XT6018
- Printheads: Epson S3200 A3 industrial printheads, 48/54/72 heads, 4–12 colors optional
- Max Print Width: 1850mm
- Printing Speed:
- 4-Color: Production 1080m/h, Quality 840m/h
- 6-Color: Production 1080m/h, Quality 840m/h
- 8-Color: Production 540m/h, Quality 420m/h
- 9-Color: Production 540m/h, Quality 420m/h
- 12-Color: Production 540m/h, Quality 420m/h
- Ink Types: Pigment, Reactive, High-Temperature Disperse Ink
- Ink Colors: CMYK + Orange / Bright Red / Royal Blue / Green; Light Cyan / Light Magenta / Light Black optional
- Applicable Fabrics: Cotton, linen, silk, nylon, wool, chemical fibers (TR/TC, nylon taffeta, acid fabrics), woven/knitted fabrics, new-type fabrics
- Feeding System: Auto constant-tension feeding, knitted fabric dedicated system, movable pressure roller, heating roller, adjustable tension splitting & feeding system
- Drying System: Independent drying system (optional)
- Ink Supply: Industrial negative-pressure degassing, internal nozzle ink circulation
- Cleaning System: Auto cleaning & moisturizing, dual brush/scraper/spray/air-knife optional
- Power Supply: 380VAC±5% 3-phase 5-wire / 220VAC, 50/60Hz
- Power Consumption: Printing system: 222KW; Heating system: 16KW
- Dimensions (L×W×H): 4990×3300×1970mm
- Weight: 5360Kg
Applications
Large & medium‑sized digital textile printing factories
Mass direct printing for apparel fabrics
High‑end scarf customization
Large‑scale printing for home textiles & curtains
Functional outdoor fabric production
High‑speed flexible mass production lines
